NORDMAX

Mono crystal panels

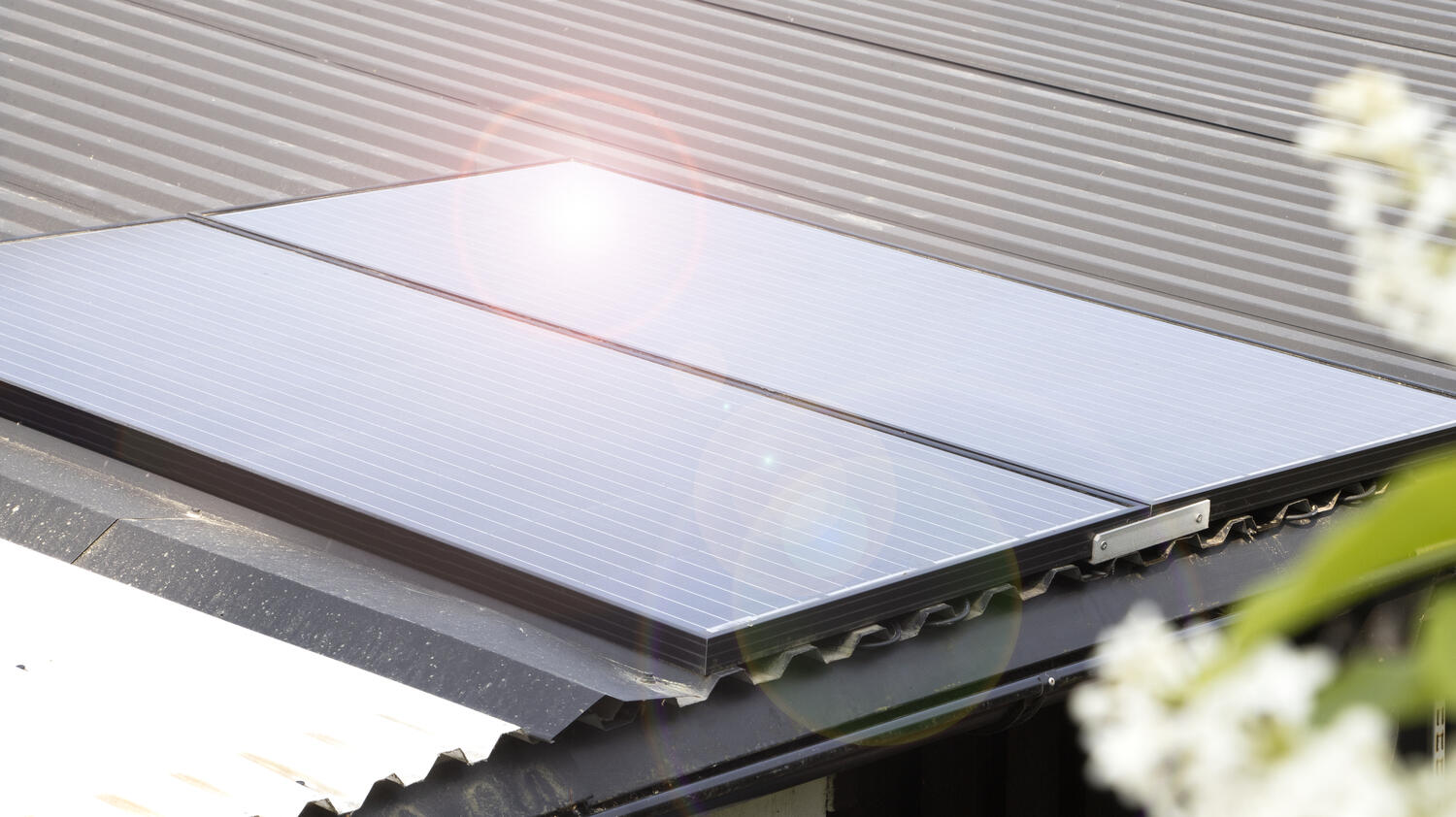

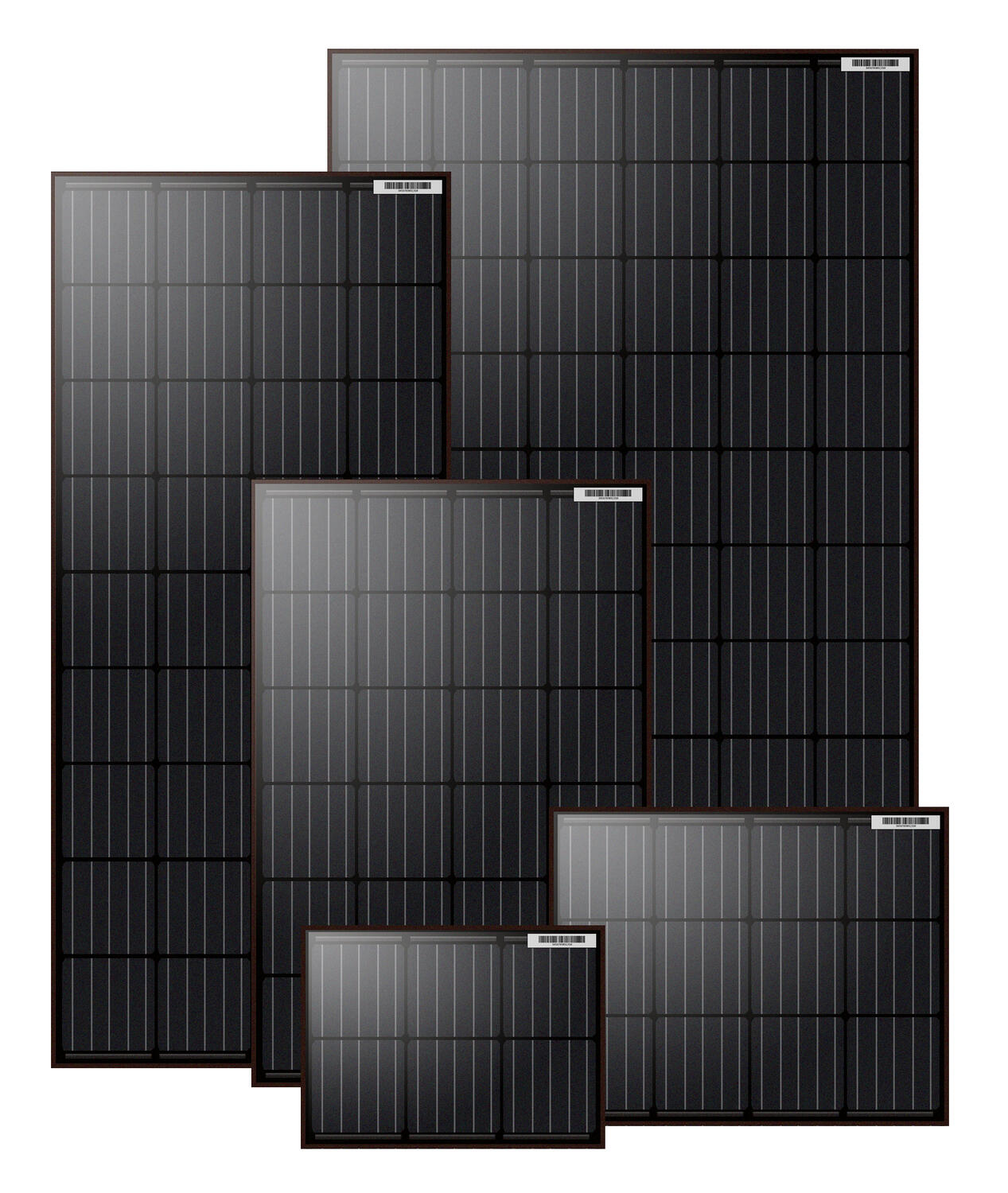

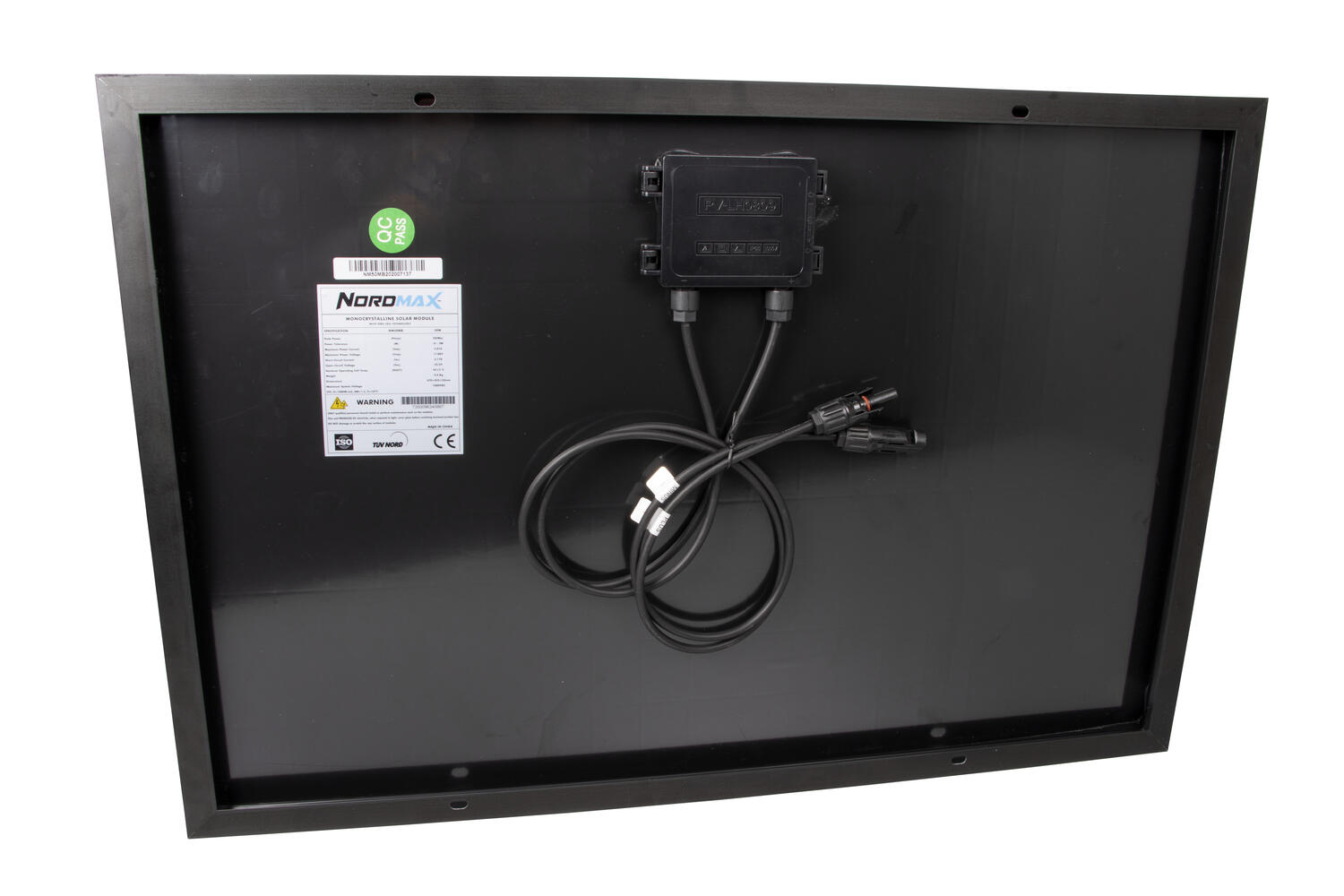

Nordmax mono crystal solar panels. The frame of the panel is made of anodized aluminum and the color is elegant black. The front glass in the panel is tempered Low Iron glass.

  • 50-300W
  • Anodiced aluminum frame
  • Black design
  • Tempered low iron front glass

Selected variant

nordmax_2020.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Features
Effect 20 W
Open-circuit voltage Voc 22.8 V

Dimensions
Height 370 mm
Width 345 mm
Thickness 25 mm
Short circuit current Isc 1.15 A
Weight 1.4 kg
Maximum current (IMP) 1.08 A
Maximum voltage (VMP) 18.6 V

Downloads

Product description

Nordmax mono crystal solar panels. The frame of the panel is made of anodized aluminum and the color is elegant black. The front glass in the panel is tempered Low Iron glass.

Accessories

Related products

Articles Effect Open-circuit voltage Voc Height Width Thickness Short circuit current Isc Weight Maximum current (IMP) Maximum voltage (VMP)

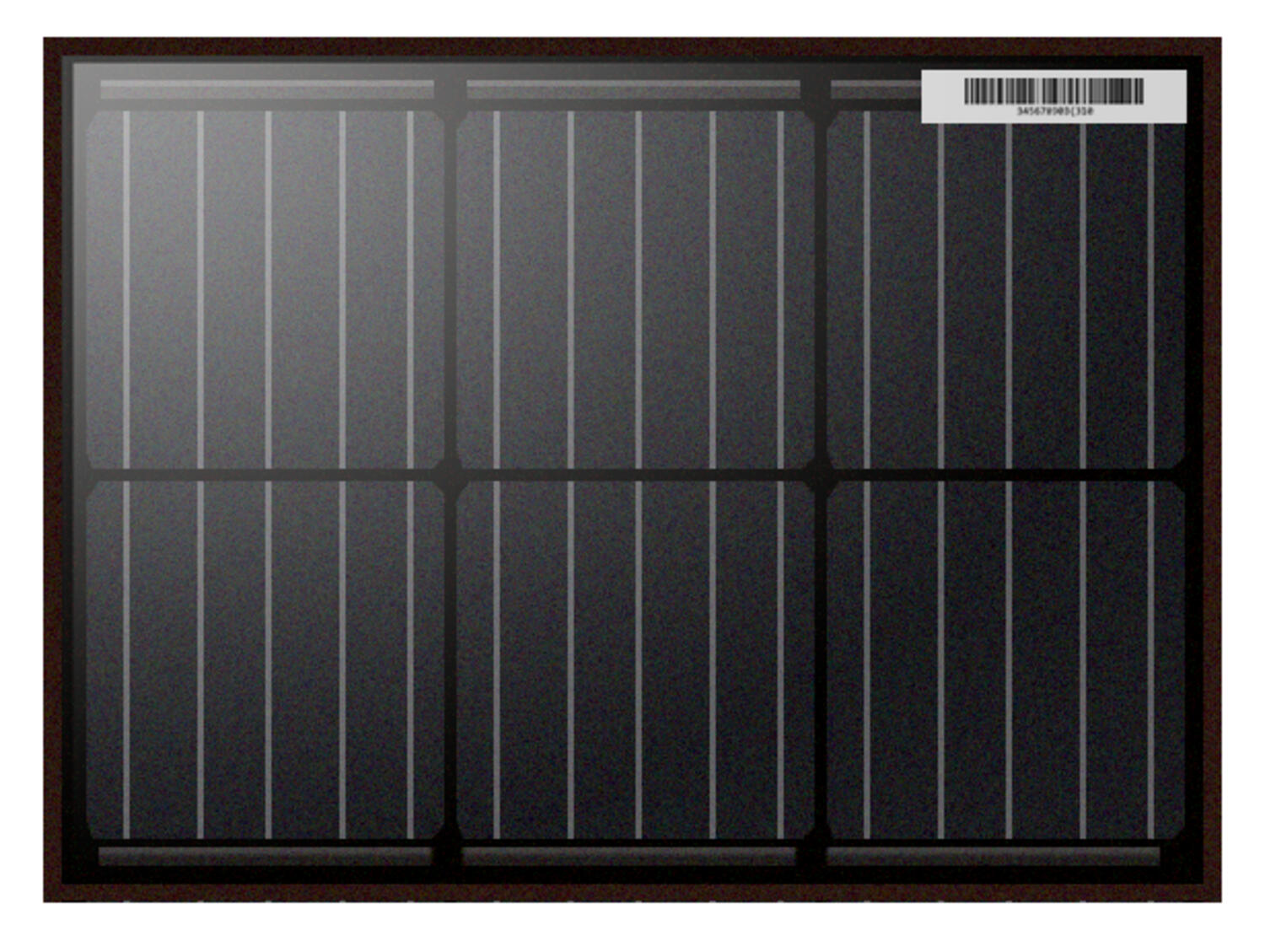

NM20MB.tif
Nordmax single crystal panel 20W
Art:
NM20MB Copied
20 W
22.8 V
370 mm
345 mm
25 mm
1.15 A
1.4 kg
1.08 A
18.6 V

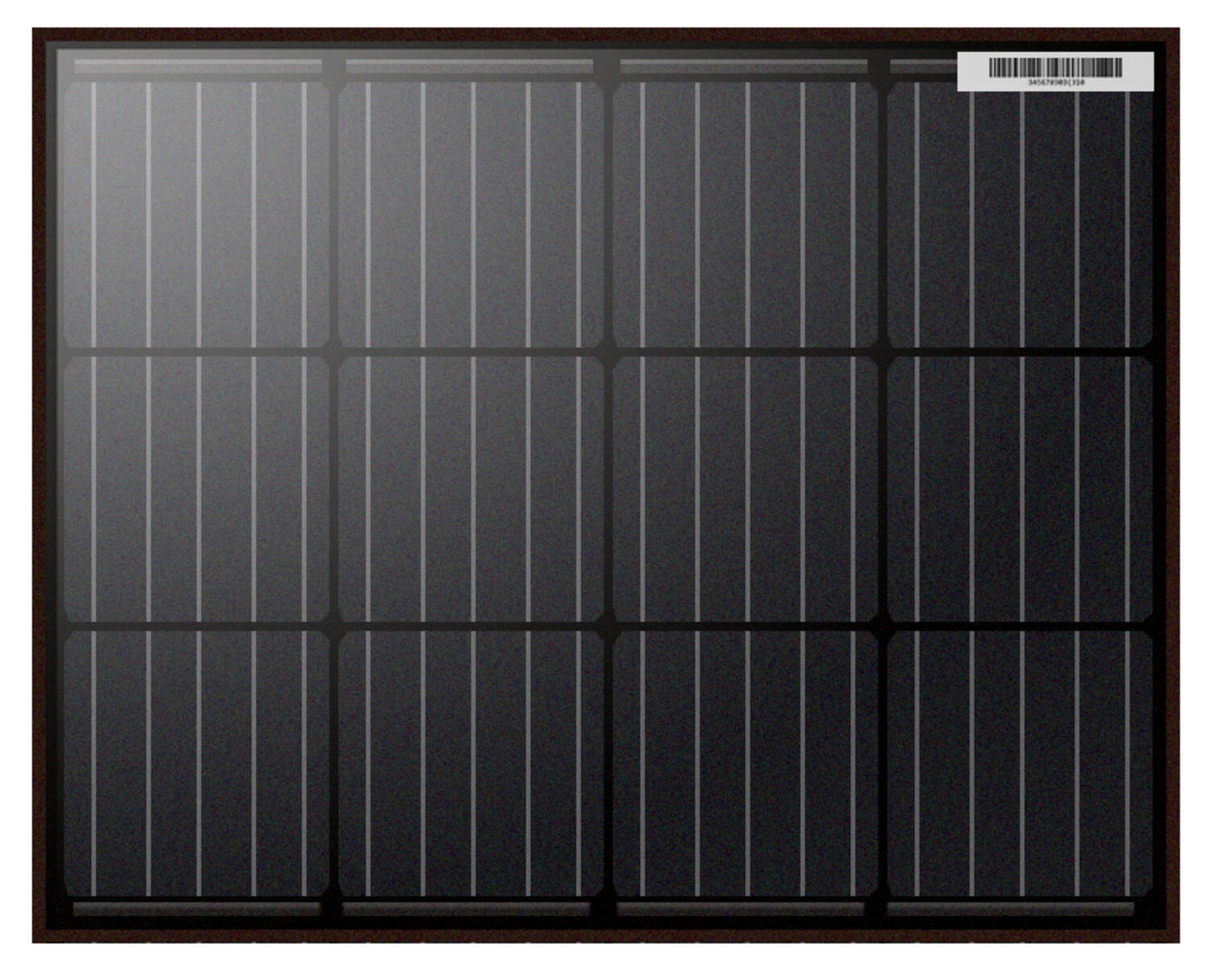

NM50MB.tif
Nordmax single crystal panel PERC 50 W
Art:
NM50MB Copied
50 W
22.5 V
670 mm
455 mm
25 mm
3.17 A
4 kg
2.81 A
17.8 V

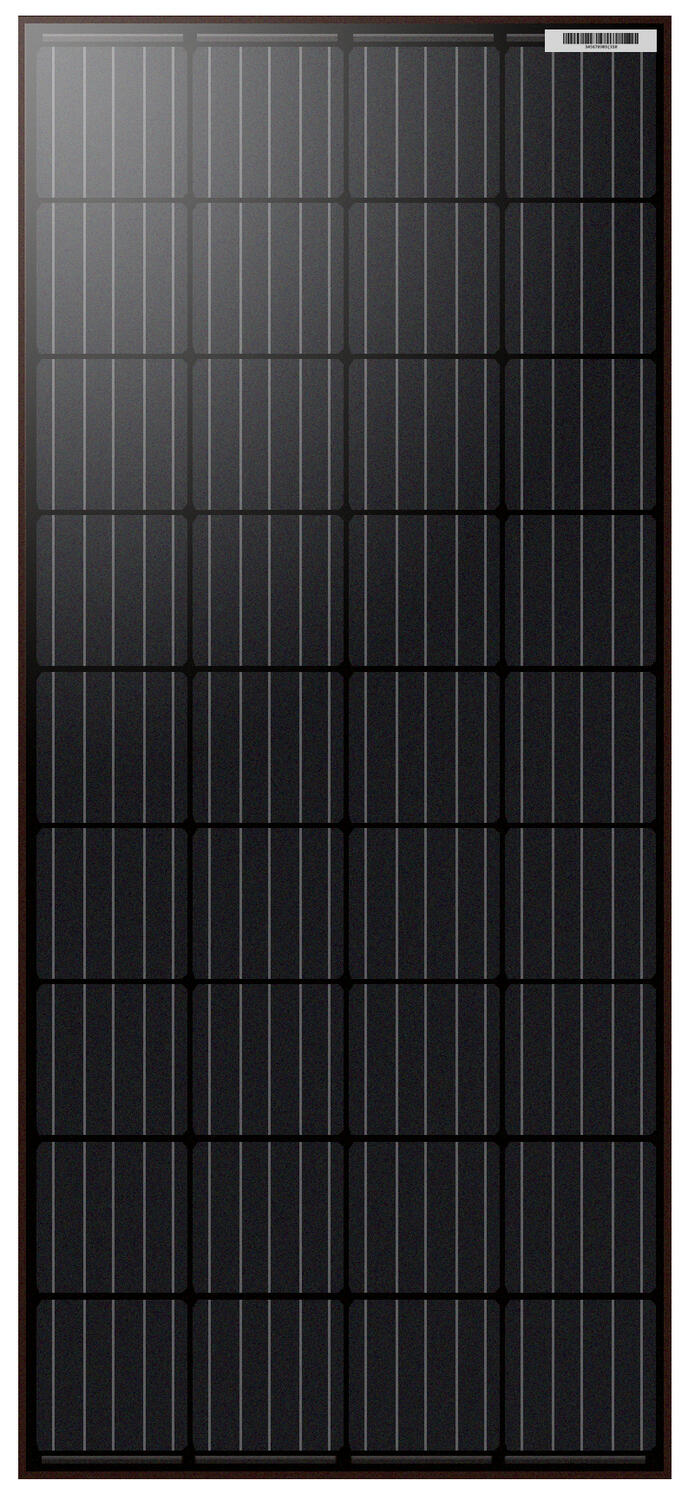

NM180MPB.tif
Nordmax single crystal panel PERC 180 W
Art:
NM180MPB Copied
180 W
22.5 V
1480 mm
670 mm
35 mm
11.11 A
11.2 kg
10 A
18 V

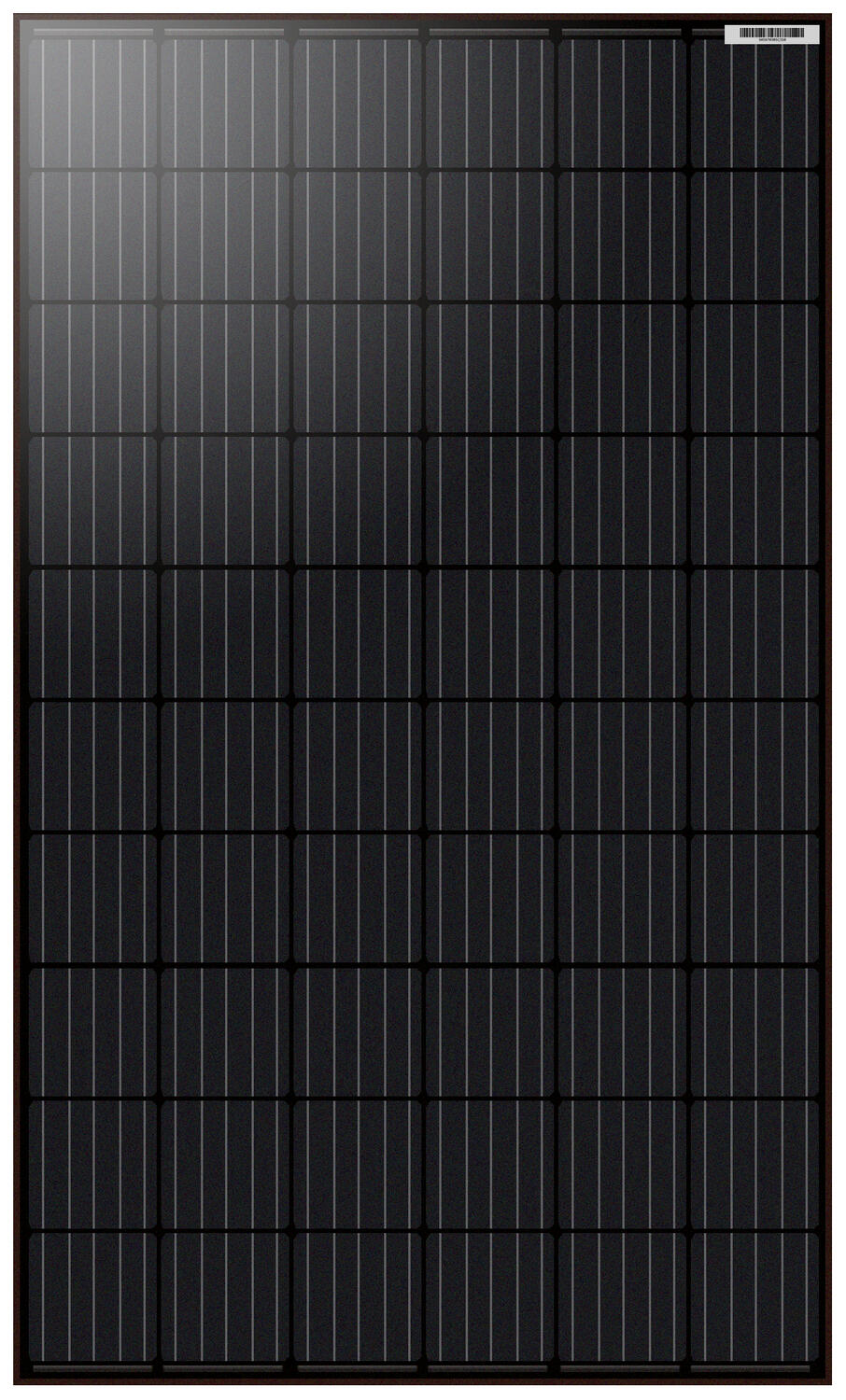

NM300MPB.tif
Art:
NM300MPB2 Copied
300 W
38.4 V
1655 mm
1002 mm
35 mm
10.26 A
19.2 kg
9.49 A
31.6 V
